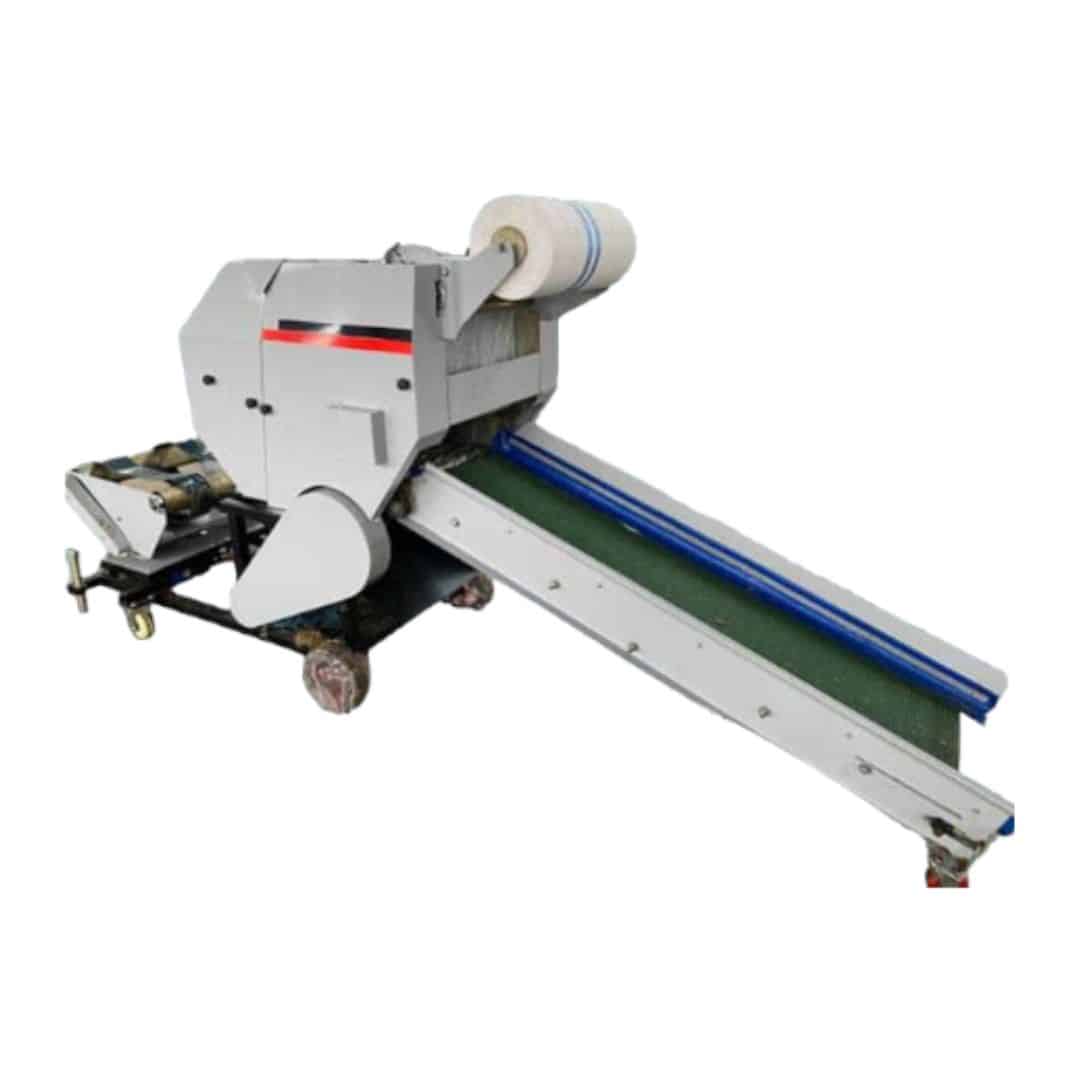

Auto Small Baler Wrapper
The Auto Small Baler Wrapper is a compact, fully automated baling and wrapping machine built for efficient round silage production in a small footprint. Running on 380 V power with a 5.5 kW + 0.55 kW motor setup, it handles automatic feeding, net winding, baling, and film wrapping in one continuous cycle at a production capacity of 60 to 80 bales per hour.
The machine produces bales sized 550 mm x 520 mm weighing approximately 40 to 90 kg depending on material, and is engineered for low maintenance and long service life through an external bearing system, an upgraded adjustable film holder, and thickened aluminum rollers. With compact dimensions of 2650 mm x 1400 mm x 1550 mm, a light 590 kg total weight, and dual touch screen and button control, the Auto Small Baler Wrapper is an accessible, space-efficient choice for farms and contractors needing dependable automated baling.
Key Benefits
- Fully automated cycle – Automatic feeding, net winding, baling, and film wrapping run as one continuous operation, reducing manual handling and operator workload
- Compact, lightweight design – At 590 kg and a 2650 x 1400 x 1550 mm footprint, it suits smaller farms, tight work areas, and operations with limited storage or transport capacity
- External bearing system – Can be lubricated with industrial grease to extend service life and save on maintenance cost and time
- Upgraded adjustable film holder – Adjustable film stretching force wraps up to 20% more bales from the same film, lowering consumable cost per bale
- Thickened aluminum rollers – Upgraded rollers with a thickened roller shaft head for longer service life under continuous use
- High output of 60 to 80 bales per hour – Strong throughput for its size, suited to dairy farms, forage contractors, and growing livestock operations
- Dual control with free switching – Stable operating system with touch screen plus button control, and seamless switching between automatic and manual modes
- Optional hopper to save labor – A hopper can be added to streamline loading and further reduce labor cost
- OEM and customization available – Color and capacity can be tailored to customer requirements, with OEM supply supported for distributors and brand partners
Technical Specifications
| Parameter | Specification |
|---|---|
| Production capacity | 60 to 80 bales/hour |
| Bale size | 550 mm x 520 mm |
| Bale weight | Around 40 to 90 kg (based on material) |
| Required power | 5.5 kW + 0.55 kW |
| Required voltage | 380 V |
| Machine dimensions | 2650 mm x 1400 mm x 1550 mm |
| Total weight | 590 kg |
| Control system | Touch screen + button, automatic/manual switching |
| Strapping method | Net winding and film wrapping |
| Optional accessory | Hopper (to reduce labor cost) |
Specifications are subject to refinement. Color and capacity can be customized to customer requirements; OEM is available. Contact the Jummos sales team to confirm the configuration for your application.
Applications & Use Cases
- Small to mid-scale silage production – Compact design produces dense, well-wrapped bales for fermentation and storage without the footprint of larger machines
- Dairy and beef cattle farms – Reliable automated baling and wrapping to secure year-round forage supply for ruminant livestock
- Forage and silage contractors – Strong hourly output in a transportable package suits operators serving smaller fields or multiple client sites
- TMR feed preparation upstream – Consistent silage bales feed directly into total mixed ration (TMR) workflows for balanced cattle diets
- Round bale silage for transport and trade – Uniform, well-wrapped bales are easy to stack, store, and transport, reducing logistics cost per ton
- Operations with limited space or budget – The lightweight 590 kg design offers full automated baling and wrapping for farms that cannot accommodate heavier equipment
Operation & Setup Notes
- Provide a stable 380 V power supply sized for the combined 5.5 kW + 0.55 kW motor load before operation, and confirm voltage and phase compatibility with your local grid
- Note the compact 2650 x 1400 x 1550 mm footprint and 590 kg weight when planning placement, movement, and storage
- Use the adjustable film holder to set the correct film stretching force for your conditions, which helps wrap more bales from the same roll of film
- Switch freely between automatic and manual control using the touch screen and button system to suit each stage of operation
- Confirm material feed produces bales within the rated 550 mm x 520 mm size; bale weight will vary between 40 and 90 kg depending on the material baled
- Lubricate the external bearing system with industrial grease on a regular schedule to extend service life and reduce maintenance cost
- Consider adding the optional hopper if you want to streamline loading and reduce labor on continuous runs
Frequently Asked Questions
What does the Auto Small Baler Wrapper do automatically?
The machine handles automatic feeding, net winding, baling, and film wrapping in one continuous cycle. A stable operating system with touch screen plus button control lets the operator switch freely between automatic and manual modes, so it monitors and adjusts the process rather than performing each step by hand.
What bale size and weight does it produce?
It produces bales sized 550 mm x 520 mm, weighing approximately 40 to 90 kg depending on the material baled, at a production capacity of 60 to 80 bales per hour.
How does the adjustable film holder reduce cost?
The upgraded film holder lets you adjust the film stretching force. By stretching film more effectively, the machine can wrap up to 20% more bales from the same amount of film, lowering the consumable cost per bale.
What power does it require?
It runs on 380 V with a combined motor load of 5.5 kW + 0.55 kW. Confirm that your power supply matches the load, voltage, and phase before operation.
Can a hopper be added?
Yes. A hopper is available as an option to streamline forage loading and reduce labor cost on continuous runs. Contact the Jummos sales team to include it in your configuration.
What makes the machine low maintenance?
The external bearing system can be lubricated with standard industrial grease, which extends service life and saves maintenance time and cost. Upgraded thickened aluminum rollers with a reinforced roller shaft head also add to long-term durability.
Is OEM or customization available?
Yes. The Auto Small Baler Wrapper can be customized in color and capacity to suit customer needs, and OEM supply is available for distributors and brand partners. Contact the Jummos sales team to discuss your configuration and requirements.
OEM & Customization
Jummos supports OEM supply and customization for the Auto Small Baler Wrapper. Color and capacity can be adapted to match your operation, distribution brand, or regional requirements. As a made-in-China agricultural machinery manufacturer focused on high cost performance and dependable service, Jummos works directly with farms, contractors, and distributors worldwide. To discuss specifications, OEM arrangements, or local availability, contact us via WhatsApp or sales@jummos.com.
