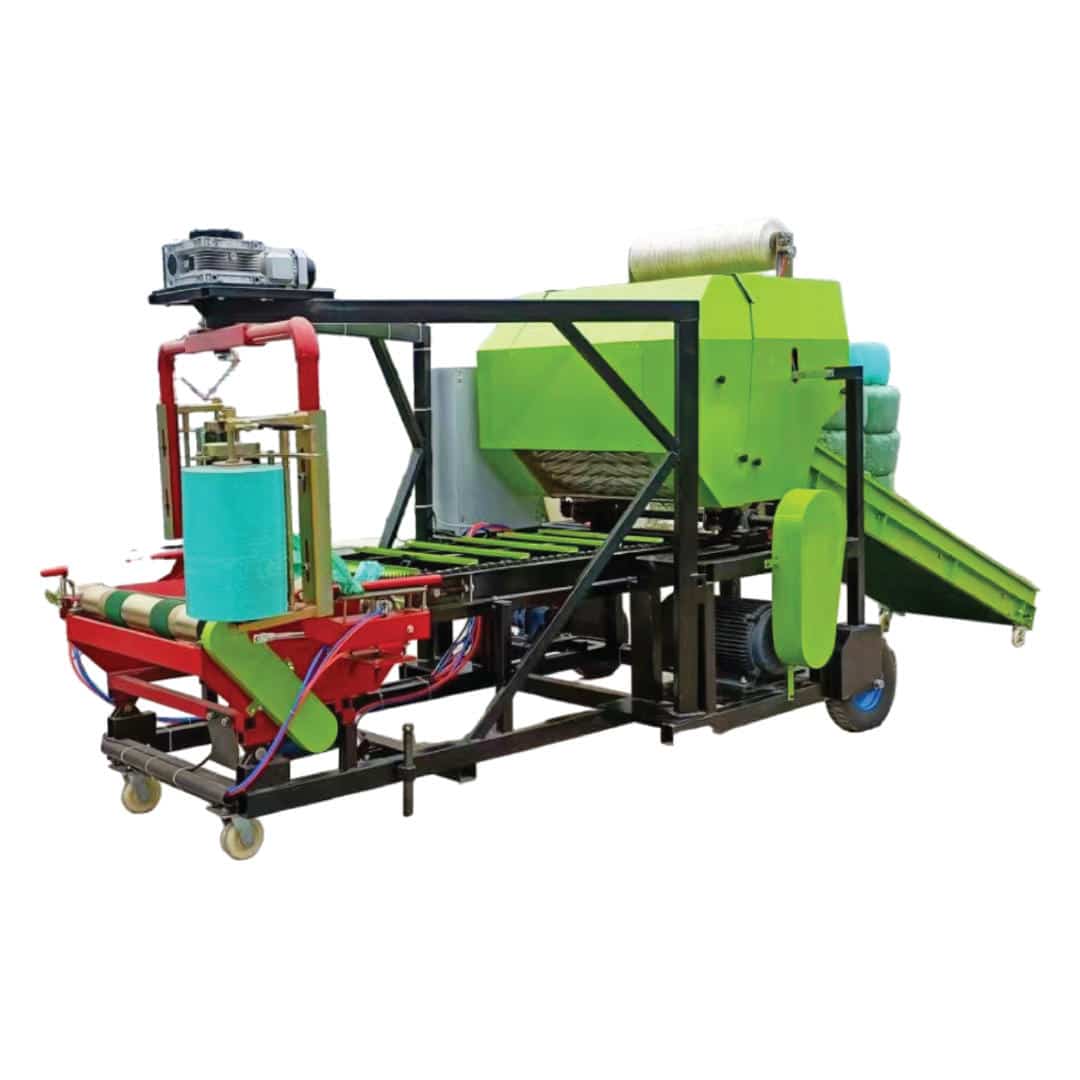

9YDB-0.7 Bale Wrapper (Electric Version)

• Electric drive operation – Clean, consistent power with no diesel emissions and lower running cost, with an 11 kW main baler motor for dependable performance
• Large bundles at 150 to 220 kg – High-capacity Φ700 x 690 mm bundles maximize forage stored per unit, reducing the number of bales to handle, transport, and store
• Dedicated motor for each function – Separate motors for the baler, conveyor, film holders, and bale table deliver stable performance and reliable power distribution
• High capacity of 40 to 50 bags per hour – Sustained throughput suited to commercial dairy farms, forage contractors, and large livestock operations
• Robust 1100 kg construction – Heavy-duty frame supports stable wrapping and long-term durability under continuous commercial use
• Efficient film wrapping – Dedicated 0.75 kW film holders deliver reliable, even film coverage for a complete airtight seal around each bundle
• Compact transport footprint – A 3600 x 1800 x 1980 mm packing dimension simplifies road movement and storage relative to the working size
• OEM and customization available – Color and capacity can be tailored to customer requirements, with OEM supply supported for distributors and brand partners

Specifications are subject to refinement. Color and capacity can be customized to customer requirements; OEM is available. Contact the Jummos sales team to confirm the configuration for your application.

• Large-scale silage production – Produces dense 150 to 220 kg bundles for fermentation and long-term storage, ideal for high-volume forage operations
• Commercial dairy and beef cattle farms – Reliable electric-powered wrapping to secure year-round forage supply for large livestock herds
• Forage and silage contractors – High hourly output supports service operators handling multiple fields or client sites in a single season
• TMR feed preparation upstream – Consistent large bundles feed directly into total mixed ration (TMR) workflows for balanced cattle diets
• Round bale silage for transport and trade – High-capacity bundles reduce the number of units handled, lowering logistics cost per ton
• Operations preferring electric power – The electric drive suits sites with reliable grid access that want to avoid diesel running cost and emissions

• Provide a stable electric power supply sized for the combined motor load, led by the 11 kW baler motor, before operation, and confirm voltage and phase compatibility with your local grid
• Note the difference between standard dimensions (3000 x 1800 x 1950 mm), working condition dimensions (5000 x 1800 x 1950 mm), and packing dimension (3600 x 1800 x 1980 mm) when planning movement, storage, and yard space
• Account for the 1100 kg machine weight when positioning, and stabilize the unit on firm, level ground before continuous operation
• Load the film holders and verify film tension and overlap before continuous operation to ensure a complete airtight seal on every bundle
• Confirm material feed produces bundles within the rated Φ700 x 690 mm size and 150 to 220 kg weight for correct wrapping performance
• Where a PTO link is used, match the rated 960 rpm and confirm safe connection to the driving unit
• Carry out routine inspection of the conveyor, film holders, bale table, and bearings to maintain consistent output and extend service life

Jummos supports OEM supply and customization for the 9YDB-0.7 Bale Wrapper (Electric Version). Color and capacity can be adapted to match your operation, distribution brand, or regional requirements. As a made-in-China agricultural machinery manufacturer focused on high cost performance and dependable service, Jummos works directly with farms, contractors, and distributors worldwide. To discuss specifications, OEM arrangements, or local availability, contact us via WhatsApp or sales@jummos.com.
