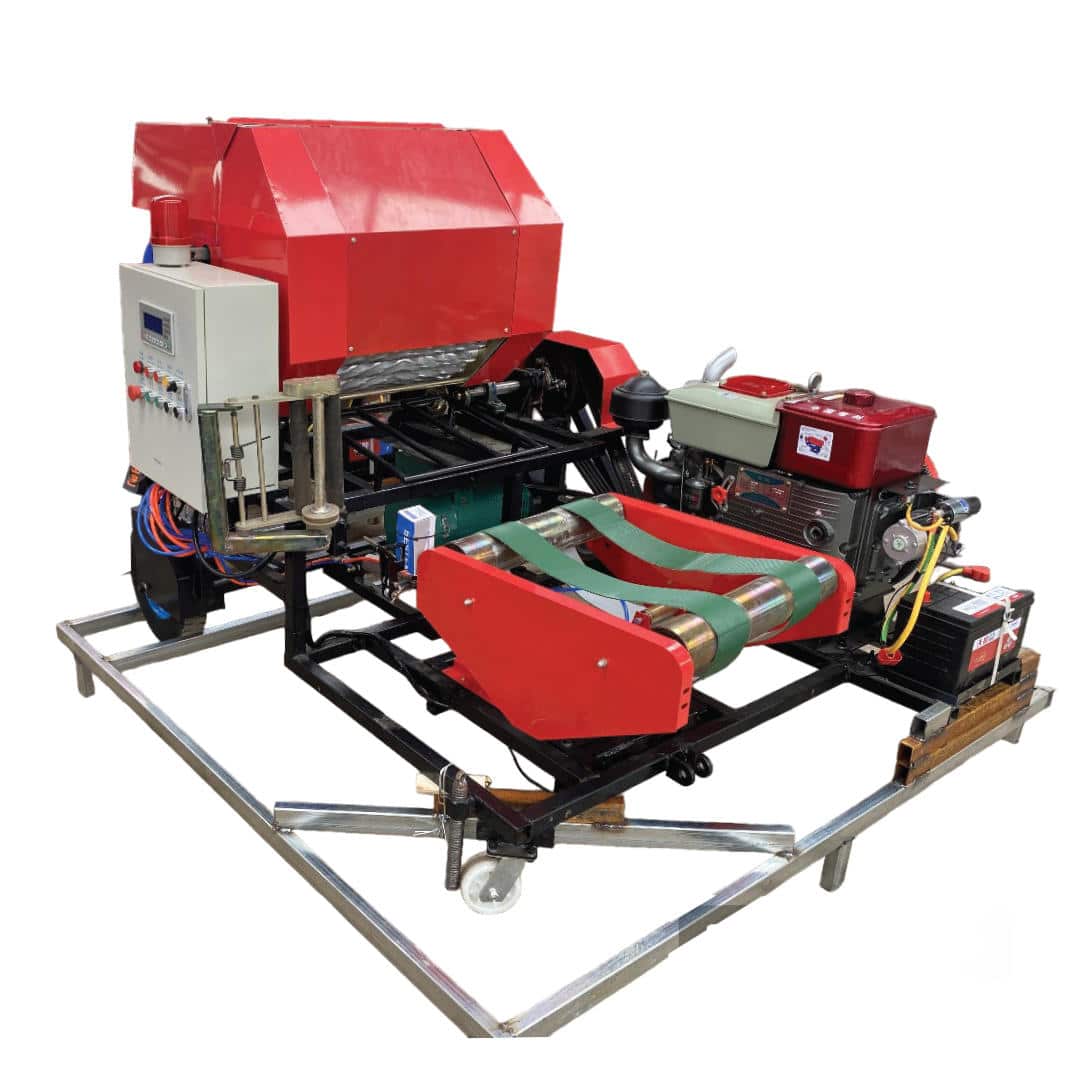

9QYG-0.5 Basic Bale Wrapper (diesel engine)
The 9QYG-0.5 Basic Bale Wrapper (Diesel Engine) is a straightforward, self-powered bale wrapper built for reliable round silage wrapping where grid power is limited or unavailable. Driven by a 15 hp diesel engine with an onboard 3 kW generator and a 0.55 kW wrapping motor, it delivers a production capacity of 45 to 60 bags per hour with full mobility independence.
Model 9QYG-0.5D weighs 730 kg as a machine, comes with practical extras including an air pump and conveyor, and ships in a wooden box for a total transport weight of 1026 kg. With working dimensions of 2100 x 1800 x 1750 mm, the diesel drive makes the 9QYG-0.5 an ideal choice for remote fields and off-grid operations that need dependable silage wrapping without relying on an electrical supply.
▶ Product Video
Key Benefits
- Diesel-powered independence – A 15 hp diesel engine with onboard generator means the machine operates anywhere, with no reliance on grid electricity
- Ideal for remote and off-grid fields – Self-contained power suits farms and contractors working sites without convenient electrical access
- Accessible entry-level model – A basic, straightforward wrapper that delivers dependable performance without the cost of larger automated machines
- Solid output of 45 to 60 bags per hour – Strong throughput for its size and class, suited to dairy farms, smallholders, and growing livestock operations
- Includes air pump and conveyor – Practical components supplied with the machine support smoother wrapping and bale handling
- Onboard 3 kW generator with 0.55 kW wrapping motor – Self-generated power drives reliable wrapping and stable bale rotation
- Secure wooden box packing – Ships in a protective wooden box for safe transport and international shipping
- OEM and customization available – Color and capacity can be tailored to customer requirements, with OEM supply supported for distributors and brand partners
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 9QYG-0.5D (Diesel Engine) |
| Machine weight | 730 kg |
| Production capacity | 45 to 60 bags/hour |
| Air pump | 1100 x 400 x 800 mm, 54 kg |
| Conveyor | 1900 x 650 x 400 mm, 42 kg |
| Supporting power (diesel engine) | 15 hp |
| Supporting power (generator) | 3 kW |
| Supporting power (wrapping motor) | 0.55 kW |
| Dimensions | 2100 x 1800 x 1750 mm |
| Working condition dimensions | 4000 x 1400 x 1500 mm |
| Packing dimension (with wooden box) | 2100 x 1800 x 1850 mm |
| Wooden box | 200 kg |
| Total weight | 1026 kg |
Specifications are subject to refinement. Color and capacity can be customized to customer requirements; OEM is available. Contact the Jummos sales team to confirm the configuration for your application.
Applications & Use Cases
- Remote and off-grid silage production – Self-powered diesel drive produces well-wrapped bales in fields without electrical access
- Dairy and beef cattle farms – Reliable wrapping to secure year-round forage supply for ruminant livestock
- Smallholders and entry-level operations – An accessible model for farms taking their first step into mechanized silage wrapping
- Mobile forage and silage contractors – Power independence and solid hourly output suit operators moving between dispersed field sites
- Round bale silage for transport and trade – Well-wrapped bales are easy to stack, store, and transport, reducing logistics cost per ton
- Operations without reliable grid power – The 15 hp diesel engine removes dependence on a stable electrical supply
Operation & Setup Notes
- Fuel and service the 15 hp diesel engine according to the manufacturer’s schedule, and check oil and fuel levels before each working session
- Operate in a well-ventilated area and follow safe practice for engine exhaust, since the diesel engine produces emissions during operation
- Note the difference between working dimensions (2100 x 1800 x 1750 mm), working condition dimensions (4000 x 1400 x 1500 mm), and packing dimension with wooden box (2100 x 1800 x 1850 mm) when planning movement and storage
- Account for the 730 kg machine weight (1026 kg total with wooden box) when positioning and handling, and stabilize the unit on firm, level ground
- Set up the supplied air pump and conveyor according to the machine layout before continuous operation
- Verify film tension and overlap before continuous operation to ensure a complete airtight seal on every bale
- Carry out routine inspection of the engine, generator, bale table, conveyor, air pump, and bearings to maintain consistent output and extend service life
Frequently Asked Questions
What does “basic” mean for the 9QYG-0.5?
It is an entry-level, straightforward bale wrapper focused on dependable core wrapping performance at an accessible cost. It delivers a solid 45 to 60 bags per hour in a self-powered 730 kg package, making it a practical choice for smaller farms and operations new to mechanized silage wrapping.
What is the difference between the diesel and electric versions?
The diesel version (9QYG-0.5D) is driven by a 15 hp diesel engine with an onboard generator, so it operates independently of grid power, ideal for remote or off-grid fields. The electric version (9QYG-0.5E) runs on a 380 V supply, offering cleaner operation and lower running cost where reliable grid power is available. Choose based on your power access and operating preference.
What power does it use?
It is powered by a 15 hp diesel engine driving a 3 kW generator, which in turn supplies the 0.55 kW wrapping motor. This self-contained setup means no external electrical supply is required.
Does it come with an air pump and conveyor?
Yes. The machine is supplied with an air pump (1100 x 400 x 800 mm, 54 kg) and a conveyor (1900 x 650 x 400 mm, 42 kg) to support smoother wrapping and bale handling.
How is it packed and shipped?
The 9QYG-0.5 ships in a protective wooden box. The packing dimension is 2100 x 1800 x 1850 mm, the wooden box adds 200 kg, and the total transport weight is 1026 kg.
Is OEM or customization available?
Yes. The 9QYG-0.5 can be customized in color and capacity to suit customer needs, and OEM supply is available for distributors and brand partners. Contact the Jummos sales team to discuss your configuration and requirements.
OEM & Customization
Jummos supports OEM supply and customization for the 9QYG-0.5 Basic Bale Wrapper (Diesel Engine). Color and capacity can be adapted to match your operation, distribution brand, or regional requirements. As a made-in-China agricultural machinery manufacturer focused on high cost performance and dependable service, Jummos works directly with farms, contractors, and distributors worldwide. To discuss specifications, OEM arrangements, or local availability, contact us via WhatsApp or sales@jummos.com.
Contact Us / Request a Quote
Product information last reviewed by the Jummos Technical Team. For the most current specifications and configuration options, contact our sales team.
