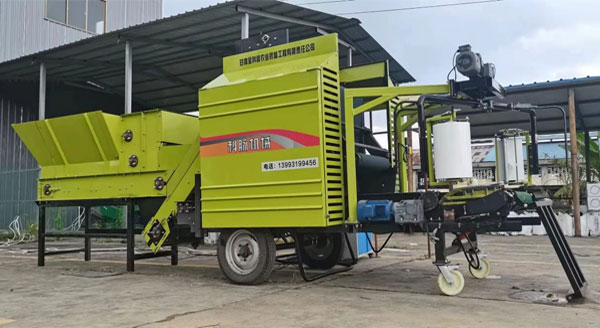

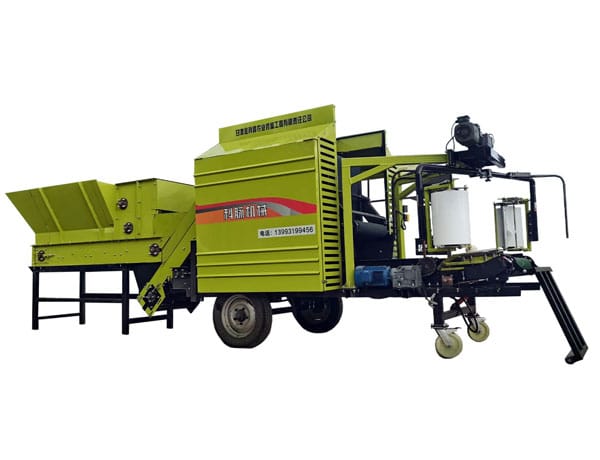

9YCL-0.63 Combi Baler Wrapper
The 9YCL-0.63 Combi Baler Wrapper is a traction-type, two-in-one machine that bales and wraps silage in a single continuous pass. Built around a fixed roller with belt system for baling and a spiral arm type coating mechanism for wrapping, it is driven by a 16.5 kW electric motor and delivers a production capacity of 55 to 65 bales per hour, making it suited to medium and large-scale silage operations.
The machine produces firm, high-density bales at 650 to 800 kg/m³ (based on 65% to 70% moisture corn silage), using 16 rollers for consistent bale shaping and 2 film holders for efficient, balanced wrapping. With a working weight of 2700 kg (2100 kg main body plus 600 kg silo), an infeed and bale chamber width of 650 mm, and an applicable bale diameter of Φ630 mm ±20 mm, the 9YCL-0.63 is engineered for reliable, repeatable output in forage and livestock-feed production.
▶ Product Video
Key Benefits
- Two-in-one combi design – Bales and wraps in a single integrated operation, eliminating the need for a separate wrapper and reducing labor, handling, and silage exposure time
- High output of 55 to 65 bales per hour – Sustained production capacity suited to commercial dairy farms, forage contractors, and large livestock operations
- 16.5 kW electric motor drive – Clean, consistent electric power delivery with no diesel emissions, lower running cost, and stable torque for baling and wrapping
- High bale density of 650 to 800 kg/m³ – Firmer bales improve anaerobic fermentation, reduce spoilage, and lower storage and transport cost per ton of feed
- Fixed roller belt baling system – Combines belt and roller action for tightly compacted, uniformly shaped bales across varying crop moisture levels
- Spiral arm wrapping mechanism with 2 film holders – Balanced, even film coverage with reliable overlap for a complete airtight seal around each bale
- 16-roller bale chamber – Consistent rotation and shaping for stable bale geometry at Φ630 mm ±20 mm
- Traction (towable) mounting – Field-mobile design that operates behind a tractor or prime mover for flexible on-site silage production
- OEM and customization available – Color and capacity can be tailored to customer requirements, with OEM supply supported for distributors and brand partners
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 9YCL-0.63 Combi Baler Wrapper |
| Structural type of baler | Fixed roller with belt system |
| Structural type of coating mechanism | Spiral arm type |
| Mounting mode | Traction type |
| Supporting power type | Electric motor |
| Supporting power | 16.5 kW |
| Overall dimensions (Working state) | 7300 x 1800 x 2350 mm |
| Overall dimensions (Transport condition) | 4200 x 1800 x 2350 / 3100 x 1600 x 1700 mm |
| Total weight | 2700 kg (Main Body 2100 kg + Silo 600 kg) |
| Infeed width | 650 mm |
| Bale chamber width | 650 mm |
| Number of film holders | 2 |
| Pallet belt width | 310 mm x 2 |
| Number of rollers | 16 |
| Film frame radius | 1000 mm |
| Bale density | 650 to 800 kg/m³ (65% to 70% moisture corn silage) |
| Applicable bale diameter range | Φ630 mm ±20 mm |
| Applicable bale length range | 650 mm +20 mm |
| Production capacity | 55 to 65 bales/hour |
Specifications are subject to refinement. Color and capacity can be customized to customer requirements; OEM is available. Contact the Jummos sales team to confirm the configuration for your application.
Applications & Use Cases
- Corn silage production – Optimized for high-moisture corn silage at 65% to 70% water content, producing dense, well-sealed bales for fermentation and long-term storage
- Dairy and beef cattle farms – Reliable on-farm silage baling and wrapping to secure year-round forage supply for ruminant livestock
- Forage and silage contractors – High hourly throughput supports service operators handling multiple fields or client sites in a single season
- TMR feed preparation upstream – Produces consistent silage bales that feed directly into total mixed ration (TMR) workflows for balanced cattle diets
- Round bale silage for transport and trade – High-density, wrapped bales are easier to stack, store, and transport, reducing logistics cost per ton
- Mixed grass and legume forage – The fixed roller belt system handles a range of forage materials where firm, uniform bale shaping is required
Operation & Setup Notes
- Provide a stable 16.5 kW electric power supply appropriate to the motor rating before operation, and confirm voltage and phase compatibility with your local grid
- As a traction-type machine, it is towed and positioned by a tractor or prime mover. Ensure the towing unit has adequate capacity for the 2700 kg working weight
- Note the difference between working dimensions (7300 x 1800 x 2350 mm) and transport dimensions when planning road movement, storage, and yard space
- Load both film holders and verify film tension and overlap before continuous operation to ensure a complete airtight seal on every bale
- Feed material that produces bales within the Φ630 mm ±20 mm diameter and 650 mm +20 mm length range for correct chamber and wrapping performance
- For best fermentation results, target the 65% to 70% moisture range so the machine reaches its rated 650 to 800 kg/m³ bale density
- Carry out routine inspection of the 16 rollers, belts, and spiral wrapping arm to maintain consistent output and extend service life
Frequently Asked Questions
What is a combi baler wrapper, and how is it different from a separate baler and wrapper?
A combi baler wrapper integrates the baling and wrapping functions into a single machine. The 9YCL-0.63 first compacts forage into a bale using its fixed roller belt system, then wraps that bale with film through the spiral arm coating mechanism, all in one continuous operation. This removes the need to transfer bales to a separate wrapper, which saves labor, reduces handling time, and shortens the window in which the silage is exposed to air before sealing.
What bale size does the 9YCL-0.63 produce?
The machine is designed for bales with a diameter of Φ630 mm ±20 mm and a length of 650 mm +20 mm. The infeed and bale chamber widths are both 650 mm, and the film frame radius is 1000 mm.
What is the production capacity?
The 9YCL-0.63 produces 55 to 65 bales per hour, which suits commercial dairy farms, livestock operations, and silage contractors that need sustained, high-volume output.
What power source does it use?
It is driven by a 16.5 kW electric motor. Electric drive provides clean operation with no diesel emissions, lower running cost, and stable torque for both baling and wrapping. Confirm that your power supply matches the motor rating, voltage, and phase before operation.
How dense are the bales, and why does density matter?
The machine produces bales at 650 to 800 kg/m³, based on corn silage at 65% to 70% moisture. Higher bale density improves anaerobic fermentation, reduces spoilage, and lowers the storage and transport cost per ton of feed, since each bale holds more material.
Is OEM or customization available?
Yes. The 9YCL-0.63 can be customized in color and capacity to suit customer needs, and OEM supply is available for distributors and brand partners. Contact the Jummos sales team to discuss your configuration and requirements.
What film should I use with this machine?
The machine uses two film holders and is designed for standard silage stretch wrap film and net wrap. Match film width and stretch grade to your bale dimensions and storage conditions. Contact the Jummos team for guidance on film selection compatible with the 9YCL-0.63.
OEM & Customization
Jummos supports OEM supply and customization for the 9YCL-0.63 Combi Baler Wrapper. Color and capacity can be adapted to match your operation, distribution brand, or regional requirements. As a made-in-China agricultural machinery manufacturer focused on high cost performance and dependable service, Jummos works directly with farms, contractors, and distributors worldwide. To discuss specifications, OEM arrangements, or local availability, contact us via WhatsApp or sales@jummos.com.
