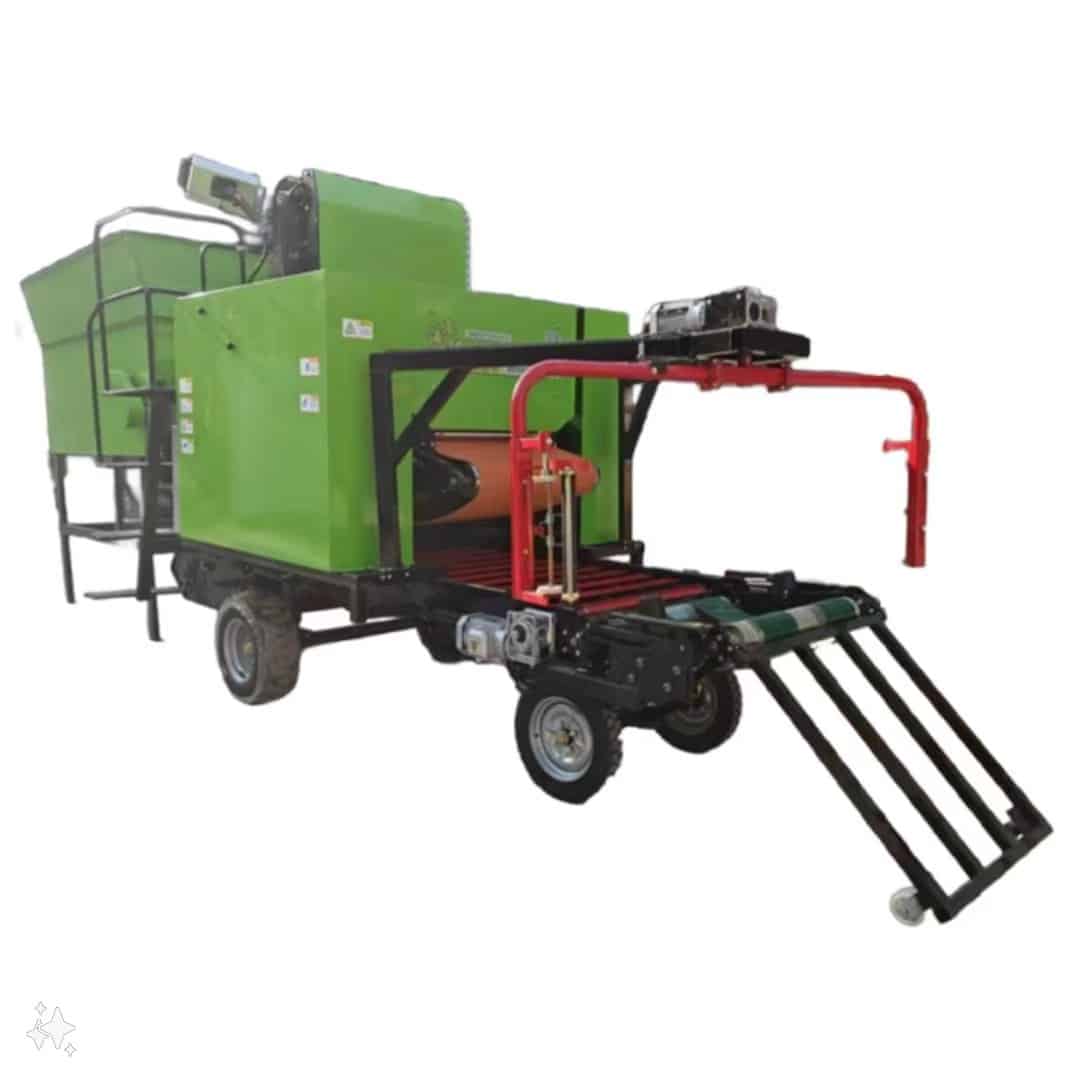

BalerPro 70 Fully Automatic Hydraulic Belt Baler
The BalerPro 70 Fully Automatic Hydraulic Belt Baler is a heavy-duty, fully automated baler engineered for high-output round silage production. Running on three-phase electricity with a powerful 11 kW main motor and a dedicated motor for every function, it bales and straps forage in one automated cycle, producing large 200 kg bales sized Φ750 x 700 mm.
Built for continuous commercial use, the BalerPro 70 features a double control system across upper and lower platforms, a robust frame supported by 19 support rollers and a 6 mm siding board, and an integrated leakage recovery device. With a work efficiency of 50 bales per hour, the flexibility to strap with inner film or net wrap, and slow-traction mobility, it is designed for demanding forage and livestock-feed operations.
▶ Product Video
Key Benefits
- Fully automatic operation – Hydraulic-driven baling and strapping run as a continuous automated cycle, minimizing manual handling and operator workload
- Powerful 11 kW main motor – High-torque main drive handles dense, heavy forage for consistent baling under continuous commercial use
- Dedicated motor for every function – Separate motors for the conveyor belt, hydraulic pump, lower and upper wrapper, bale conveyor chain, and dual hopper functions ensure stable, reliable performance
- Large 200 kg bales at Φ750 x 700 mm – High-capacity bale format maximizes forage stored per bale, reducing the number of units to handle, transport, and store
- Double control system (upper and lower platforms) – Dual control points improve operating flexibility and oversight during the baling cycle
- Integrated leakage recovery device – Built-in recycling bin captures runoff for a cleaner work area and reduced material waste
- 19 support rollers and 6 mm siding board – Heavy-duty construction supports stable bale shaping and long-term durability under demanding loads
- Flexible strapping with inner film or net wrap – Choose the binding method that matches your crop type, storage strategy, and feeding workflow
- Slow-traction mobility – Towable at up to 25 km/h on hardened road surfaces for flexible movement between work sites
- OEM and customization available – Color and capacity can be tailored to customer requirements, with OEM supply supported for distributors and brand partners
Technical Specifications
| Parameter | Specification |
|---|---|
| Product model | 70 type (three-phase electricity) |
| Main motor | 11 kW (with a reducer) |
| Conveyor belt motor | 2.2 kW (with a reducer) |
| Hydraulic pump station motor | 3 kW (full-time working type) |
| Wrapper motor | 0.55 kW (with a reducer) |
| Upper wrapper motor | 0.75 kW (with a reducer) |
| Bale conveyor chain | 1.5 kW (with a reducer) |
| Hopper motor (for loading the forage) | 2.2 kW (with a reducer) |
| Hopper motor (for breaking up the forage) | 5.5 kW |
| Baler size | 6550 x 1770 x 2350 mm (including single outlet feeding box) |
| Work efficiency | 50 bales/hour |
| Bale weight | 200 kg |
| Bale size | Φ750 x 700 mm |
| Siding board thickness | 6 mm |
| Chain | 12A |
| Strapping method | Inner film or net wrap |
| Support rollers | 19 pieces |
| Shaft size | 30 mm |
| Bearing model | FC206 (Harbin brand) |
| Control system | Upper and lower platforms (double control) |
| Travel method | Slow traction |
| Leakage handling | Integrated recycling bin |
| Traction speed | Less than 25 km/h (hardened road surface) |
| Baler weight | 2300 kg |
| Transport size 1 | 4.6 x 1.85 x 2.35 m |
| Transport size 2 | 3 x 2.6 x 1.5 m |
The equipment includes an integrated leakage recovery device. Specifications are subject to refinement. Color and capacity can be customized to customer requirements; OEM is available. Contact the Jummos sales team to confirm the configuration for your application.
Applications & Use Cases
- Large-scale silage production – Produces dense 200 kg bales for fermentation and long-term storage, ideal for high-volume forage operations
- Commercial dairy and beef cattle farms – Reliable automated baling to secure year-round forage supply for large livestock herds
- Forage and silage contractors – Heavy-duty throughput and slow-traction mobility support service operators working across multiple fields or sites
- TMR feed preparation upstream – Consistent large bales feed directly into total mixed ration (TMR) workflows for balanced cattle diets
- Round bale silage for transport and trade – High-capacity bales reduce the number of units handled, lowering logistics cost per ton
- Operations needing flexible binding – The choice of inner film or net wrap suits farms with varied crop types and storage conditions
Operation & Setup Notes
- Provide a stable three-phase electric power supply sized for the combined motor load, led by the 11 kW main motor, before operation, and confirm voltage and phase compatibility with your local grid
- As a slow-traction machine, it is towed and positioned by a tractor or prime mover. Keep traction speed below 25 km/h on hardened road surfaces, and ensure the towing unit has adequate capacity for the 2300 kg baler weight
- Note the difference between working size (6550 x 1770 x 2350 mm) and the two transport sizes (4.6 x 1.85 x 2.35 m and 3 x 2.6 x 1.5 m) when planning road movement, storage, and yard space
- Select the strapping method (inner film or net wrap) appropriate to your crop and storage strategy, and load the binding material before continuous operation
- Use the double control system across upper and lower platforms to set and monitor the baling cycle, and verify settings at the start of each run
- Confirm material feed produces bales within the rated Φ750 x 700 mm size and 200 kg weight for correct chamber and binding performance
- Empty and maintain the integrated leakage recovery bin regularly to keep the work area clean and the recovery system effective
- Carry out routine inspection of the 19 support rollers, 12A chain, FC206 bearings, and hydraulic system to maintain consistent output and extend service life
Frequently Asked Questions
What makes the BalerPro 70 fully automatic?
The machine runs the baling and strapping process as a continuous hydraulic-driven cycle, managed through a double control system across upper and lower platforms. Dedicated motors handle the main drive, conveyor belt, hydraulic pump, lower and upper wrapper, bale conveyor chain, and the dual hopper functions, so the operator monitors and adjusts the cycle rather than performing each step manually.
What bale size and weight does it produce?
The BalerPro 70 produces large round bales sized Φ750 x 700 mm, weighing 200 kg each, at a work efficiency of 50 bales per hour.
Can it use both film and net wrap?
Yes. The strapping method supports either inner film or net wrap, so you can choose the binding that matches your crop type, storage strategy, and downstream feeding workflow.
What power does it require?
It runs on three-phase electricity, led by an 11 kW main motor, with separate motors for the conveyor belt, hydraulic pump, wrappers, bale conveyor chain, and dual hopper functions (loading at 2.2 kW and breaking up at 5.5 kW). Confirm that your power supply matches the combined load, voltage, and phase before operation.
What is the integrated leakage recovery device?
The BalerPro 70 includes a built-in recycling bin that captures runoff and leakage during baling. This keeps the work area cleaner and reduces material waste, an advantage for continuous commercial operation.
How is the machine transported?
It is a slow-traction machine, towed by a tractor or prime mover at speeds below 25 km/h on hardened road surfaces. It has two transport configurations, 4.6 x 1.85 x 2.35 m and 3 x 2.6 x 1.5 m, to suit different movement and storage needs.
Is OEM or customization available?
Yes. The BalerPro 70 can be customized in color and capacity to suit customer needs, and OEM supply is available for distributors and brand partners. Contact the Jummos sales team to discuss your configuration and requirements.
OEM & Customization
Jummos supports OEM supply and customization for the BalerPro 70 Fully Automatic Hydraulic Belt Baler. Color and capacity can be adapted to match your operation, distribution brand, or regional requirements. As a made-in-China agricultural machinery manufacturer focused on high cost performance and dependable service, Jummos works directly with farms, contractors, and distributors worldwide. To discuss specifications, OEM arrangements, or local availability, contact us via WhatsApp or sales@jummos.com.
